A/C UNIT

Mechanical suspension seating


air suspension seating


Customizations


cobham vehicle mounted respiratory chemical defense system

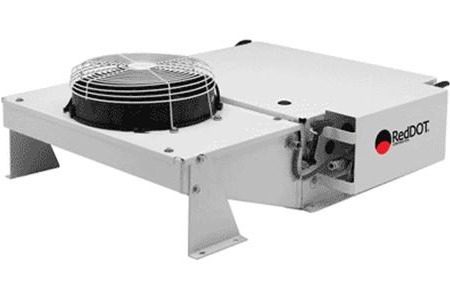

The R-9757 rooftop heater/air conditioner is designed with versatility and dependability in mind. In addition, this unit comes with HEAT. Dependable, Red Dot has again used its many years of off-road experience in designing the R-9757 with the most rugged and highest-quality components available.
​A low-profile ceiling plemum blends with any interior. Heating -- 45,000 BTU/hr @ 100º F (11,340 kcal/h @ 37.8º C ) air temp. rise. Cooling -- 25,000 BTU/hr with 36º F (6,300 kcal/h with 2.2º C) refrigerant temp. and 80º F (26.7º C) wet bulb entering air

global positioning system

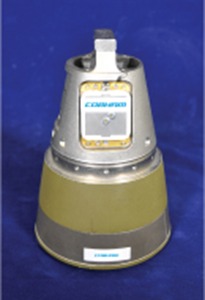

Cobham Sensor Electronics - Lowell offers various low profile & conformal GPS antennas for conventional applications that are fully flight and gun qualified and available or can be adapted for custom installations and applications.
Lowell antennas have produced in excess of 2 million GPS antennas which are constructed using proven design and manufacturing techniques.
With over 50 different designs for both L1 and L1/L2 applications including Low RCS, missile, manpack, munitions and parachute offset navigation assemblies.
Unique requirements of small size, light weight and low cost are our specialty.

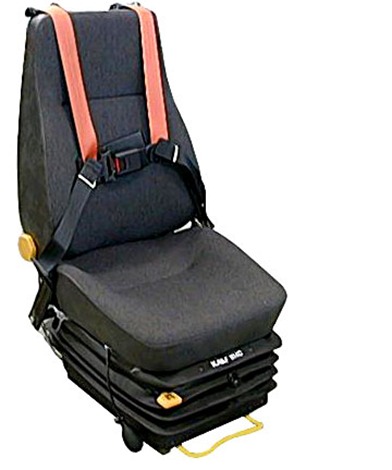

  • 4 point integral safety harness. Reinforced seat frame


  • Heavy duty mechanical suspension


  • 524C, double shock damper


  • Full range backrest recline with super durable rotary recliner


  • Pneumatic lumbar adjustment


  • Seat pan height and tilt adjustment


  • Double locking sliderails


  • Seatbelt anchorage to SAE J386 (15kN) applied to the lap belt at 60º

​​

  • Optional heavy duty armrests (shown)


  • Operator weight: 110- 330lbs

  • Positive pressure air flow


  • Full 360 swivel mount capability


  • User regulated air flow rate


  • User protected in event of power failure


  • Fits any chemical defense mask with NATO standard components


  • Additional components available : C2A1 or C7 NBC canister


  • Operating Voltage: 24V

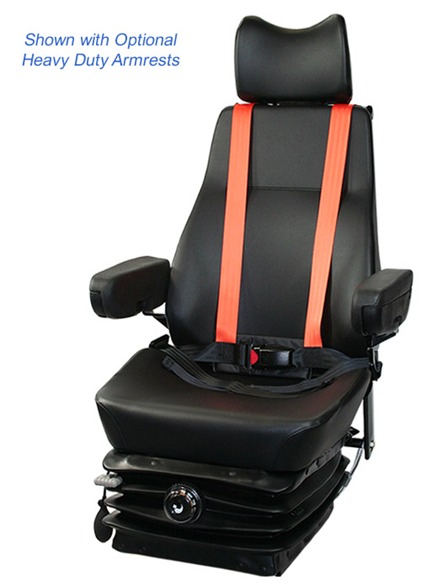

  • 4 point integral safety harness. Reinforced seat frame


  • Heavy duty air suspension w/ single shock damper


  • 24 volt integral compressor


  • Full range backrest recline with super durable rotary recliner


  • Pneumatic lumbar adjustment


  • Seat pan height and tilt adjustment


  • Double locking sliderails


  • Seatbelt anchorage to SAE J386 (15kN) applied to the lap belt at 60º

​​

  • Optional heavy duty armrests (shown)


  • Operator weight: 110- 330lbs
